There is a misconception that 6 speed cars need 6 speed ECUs to function with reverse lockout, but that is not the case. With some minor wiring (moving 1 wire) and one setting change, you can enable reverse lockout using ANY KPro compatible ECU.

Instructions:

1.) Move Pin B7 (Reverse Lockout) to one of the 4 pin locations: E21 (EVAP Vent), E20 (EVAP Bypass), E18 (AC Clutch Relay), B6 (Fan Control).

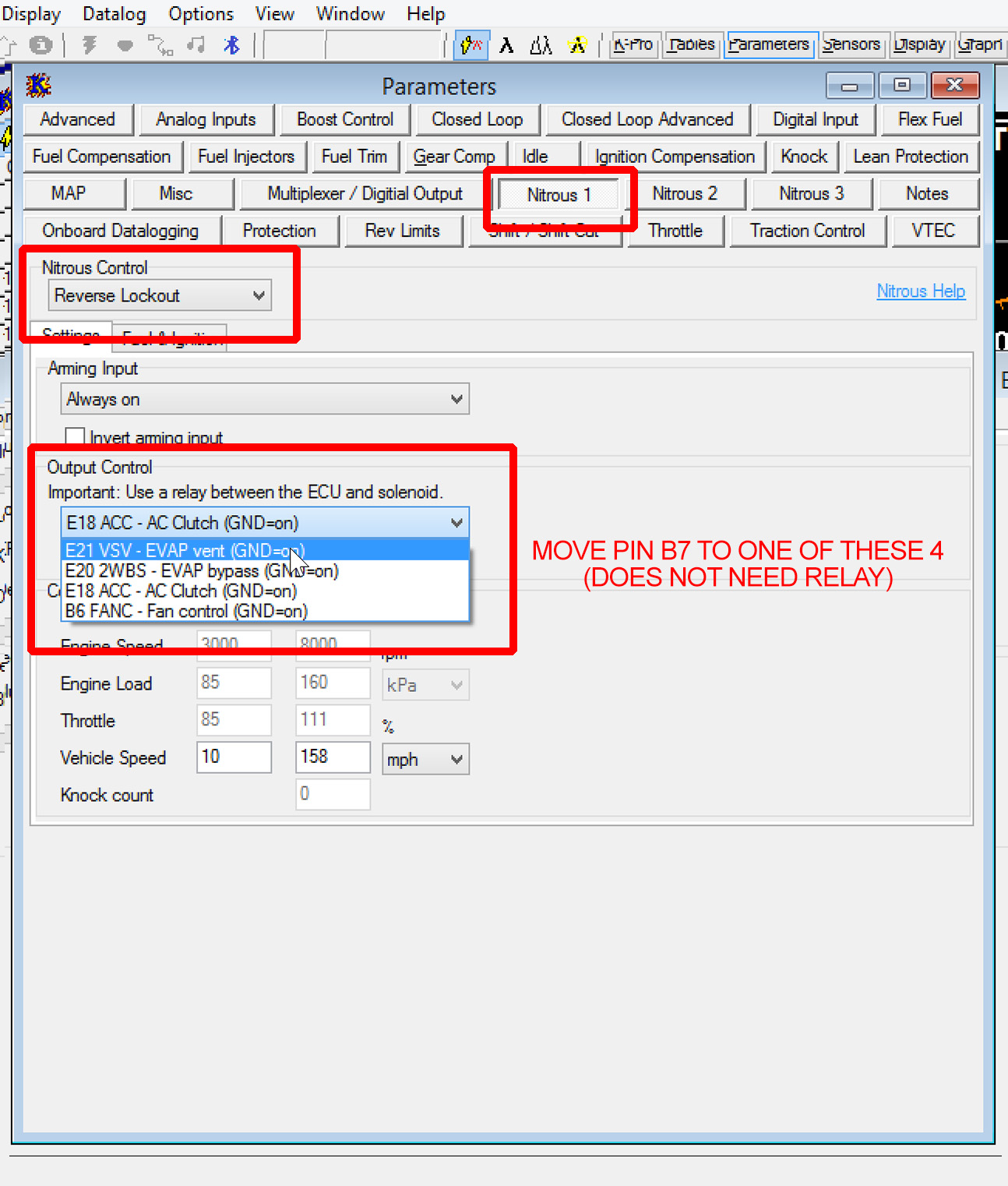

2.) Open KManager Software go to Parameters>Nitrous 1.
3.) Set 'Nitrous Control' to Reverse Lockout
4.) Set 'Output Control' to the pin that you moved the pin in step 1 to.

5.) Upload

Reverse Lockout should now be operational.

Kenny is the author of this solution article.
