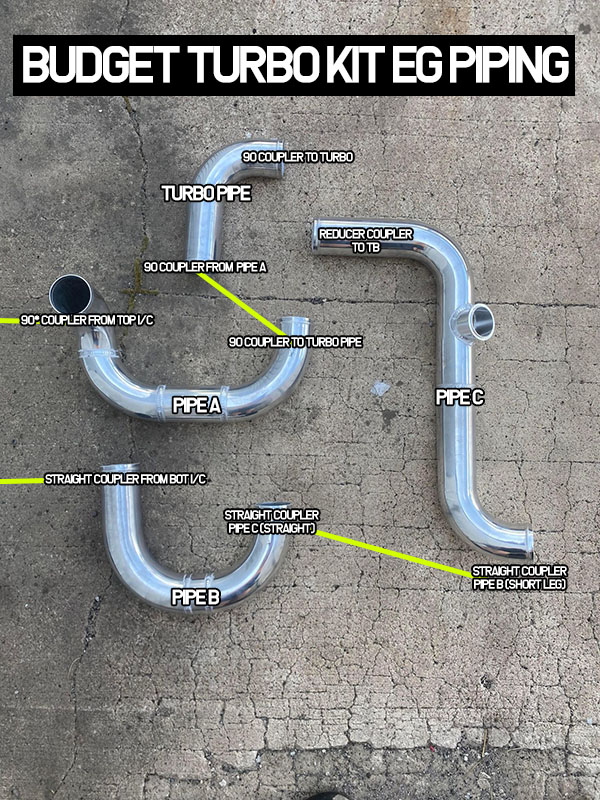

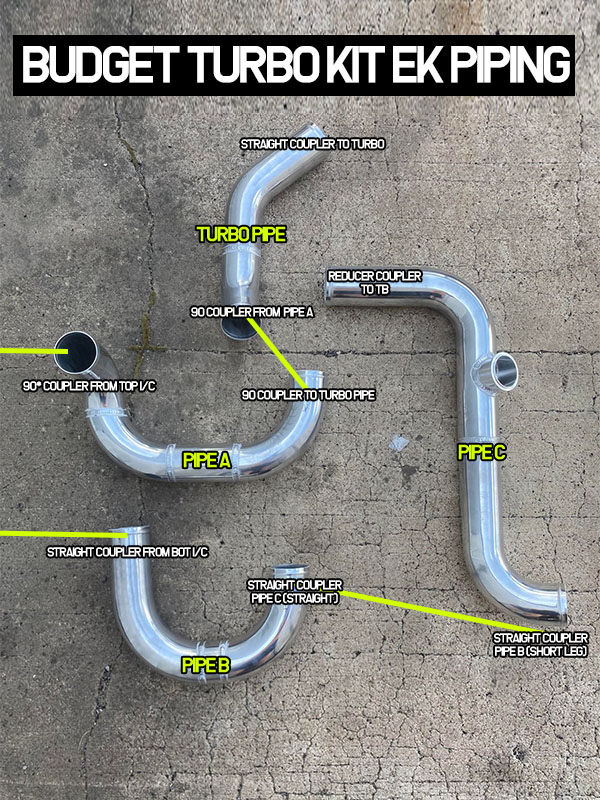

These are the diagrams for the Intercooler piping orientation for the HP Budget Turbo Kit V3. Do not hard mount the intercooler until fitment of the piping has been confirmed. EG/DC and EK are two separate SKUs with different pipe orientation, please take note of each pipe for your install. EG should use 3x 90* couplers, 2x straights, and a single reducer coupler to the throttle body.
Intercooler Piping Diagrams Print
